MSA - magnetisch
Extreem veelzijdige en flexibele magnetische houder

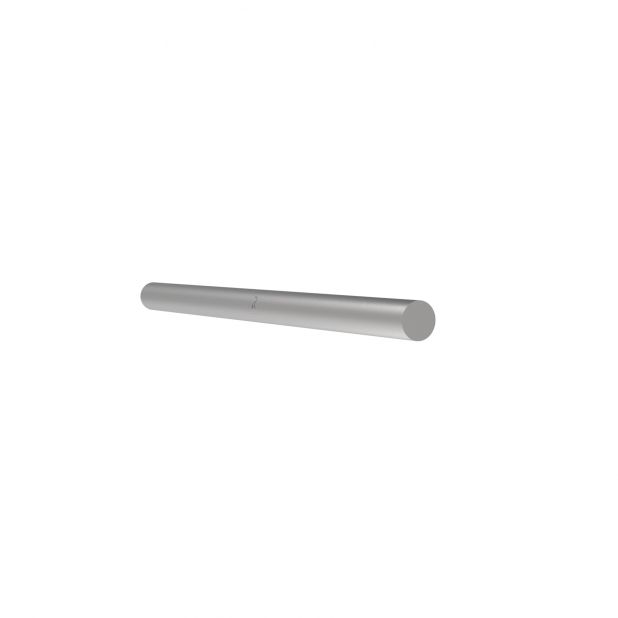

Radiusgereedschap: C3 - C7.5
| Type | Model | Lengte | R(mm) | Gewicht | Prijs | |
|---|---|---|---|---|---|---|
| C3.835 | C3 | 835 mm | 3.0 | 0.20 |
|
|
| C3.415 | C3 | 415 mm | 3.0 | 0.10 |
|
|
| C3.5.835 | C3.5 | 835 mm | 3.5 | 0.20 |
|
|
| C3.5.415 | C3.5 | 415 mm | 3.5 | 0.10 |
|
|
| C4.835 | C4 | 835 mm | 4.0 | 0.35 |
|
|
| C4.415 | C4 | 415 mm | 4.0 | 0.17 |
|
|
| C4.5.835 | C4.5 | 835 mm | 4.5 | 0.50 |
|
|
| C4.5.415 | C4.5 | 415 mm | 4.5 | 0.25 |
|
|
| C5.835 | C5 | 835 mm | 5.0 | 0.60 |
|
|
| C5.415 | C5 | 415 mm | 5.0 | 0.30 |
|
|
| C5.5.835 | C5.5 | 835 mm | 5.5 | 0.70 |
|
|
| C5.5.415 | C5.5 | 415 mm | 5.5 | 0.35 |
|
|
| C6.835 | C6 | 835 mm | 6.0 | 0.80 |
|
|
| C6.415 | C6 | 415 mm | 6.0 | 0.40 |
|
|
| C6.5.835 | C6.5 | 835 mm | 6.5 | 1.00 |
|
|
| C6.5.415 | C6.5 | 415 mm | 6.5 | 0.50 |
|
|
| C7.835 | C7 | 835 mm | 7.0 | 0.80 |
|
|
| C7.415 | C7 | 415 mm | 7.0 | 0.40 |
|
|
| C7.5.835 | C7.5 | 835 mm | 7.5 | 1.00 |
|
|
| C7.5.415 | C7.5 | 415 mm | 7.5 | 0.50 |
|
- Omschrijving
- Eigenschappen

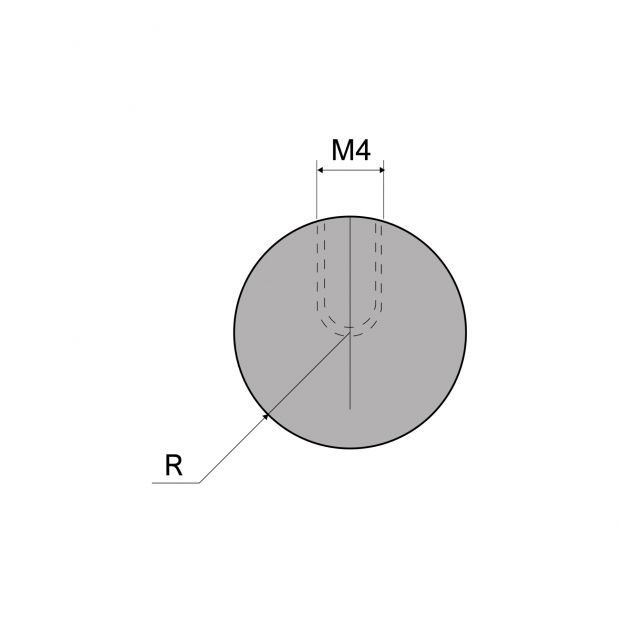

Radiusgereedschap Gereedschapsstaal=C45, Max. capaciteit=400kN/m. In combinatie met radiushouder PU67.14-S.
