MSA - magnetisch
Extreem veelzijdige en flexibele magnetische houder
H12.053.0
| Type | Model | Lengte | Gewicht | Prijs | |
|---|---|---|---|---|---|
| H12.053.01.01.100 | H12.053.01.01 | 100 mm | 2.65 |
|
|
| H12.053.04.01.75.DX | H12.053.04.01 | 75 mm DX | 1.86 |
|
|
| H12.053.04.02.85.DX | H12.053.04.02 | 85 mm DX | 2.12 |
|
|
| H12.053.04.03.95.DX | H12.053.04.03 | 95 mm DX | 2.39 |
|
|
| H12.053.04.06.80.SX | H12.053.04.06 | 80 mm SX | 1.99 |
|
|
| H12.053.05.01.75.SX | H12.053.05.01 | 75 mm SX | 1.86 |
|
|
| H12.053.05.02.85.SX | H12.053.05.02 | 85 mm SX | 2.12 |
|
|
| H12.053.05.03.95.SX | H12.053.05.03 | 95 mm SX | 2.39 |
|
|
| H12.053.05.06.80.DX | H12.053.05.06 | 80 mm DX | 1.99 |
|
|
| H12.053.02.01.50 | H12.053.02.01 | 50 mm | 1.33 |
|
|
| H12.053.02.02.55 | H12.053.02.02 | 55 mm | 1.46 |
|
|
| H12.053.02.03.60 | H12.053.02.03 | 60 mm | 1.59 |
|
|
| H12.053.02.04.65 | H12.053.02.04 | 65 mm | 1.72 |
|
|
| H12.053.02.05.70 | H12.053.02.05 | 70 mm | 1.86 |
|
|
| H12.053.02.06.75 | H12.053.02.06 | 75 mm | 1.99 |
|
|
| H12.053.02.07.80 | H12.053.02.07 | 80 mm | 2.12 |
|
|
| H12.053.02.08.85 | H12.053.02.08 | 85 mm | 2.25 |
|
|
| H12.053.02.09.90 | H12.053.02.09 | 90 mm | 2.39 |
|
|
| H12.053.02.10.95 | H12.053.02.10 | 95 mm | 2.52 |
|
|
| H12.053.04.04.105.DX | H12.053.04.04 | 105 mm DX | 2.60 |
|
|
| H12.053.04.05.115.DX | H12.053.04.05 | 115 mm DX | 2.92 |
|
|
| H12.053.05.04.105.SX | H12.053.05.04 | 105 mm SX | 2.60 |
|
|
| H12.053.05.05.115.SX | H12.053.05.05 | 115 mm SX | 2.92 |
|
- Omschrijving
- Eigenschappen

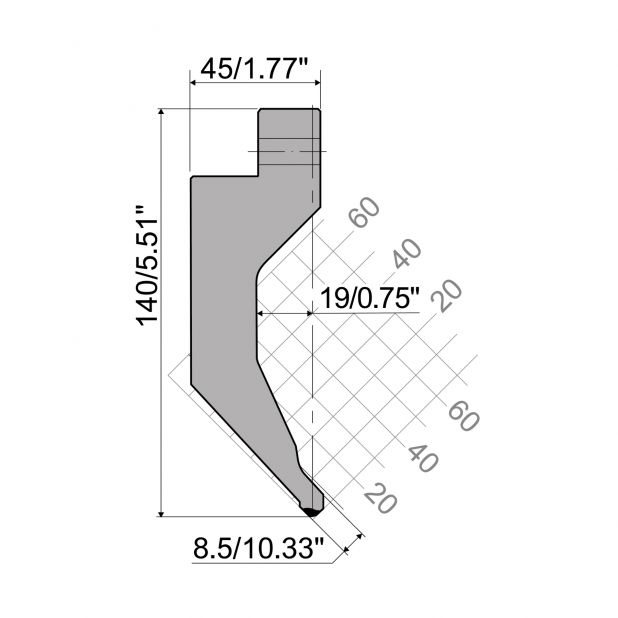

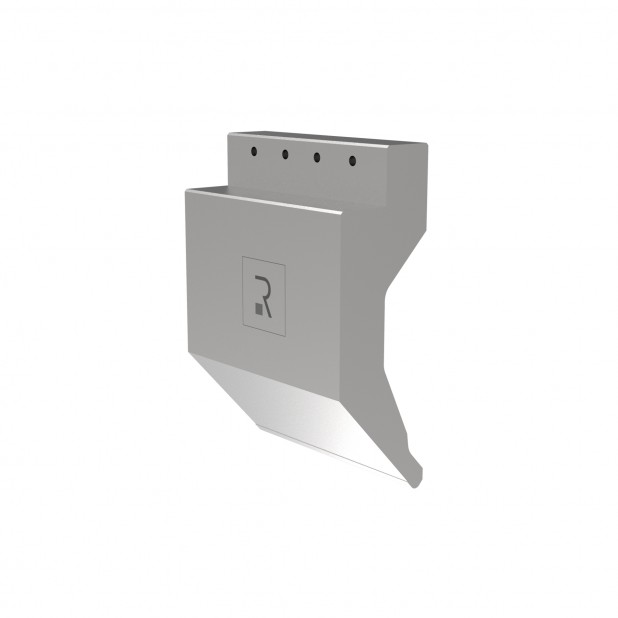

Bovengereedschap R6 Hämmerle type met hoogte=140mm, Radius=3mm, Gereedschapsstaal=HRc 58-60, Max. capaciteit=975kN/m.
LASER TRACKERS | B-LIGHT
Universeel buigmarkering trackingsysteem welke de operator ondersteund tijdens het buigproces met het positioneren van de producten op een kantbank
