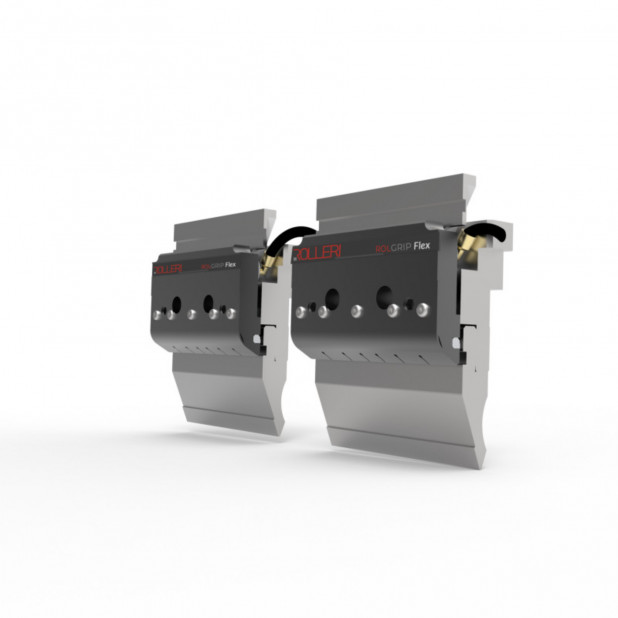

ROL GRIP FLEX
| Type | Type | Prijs | |
|---|---|---|---|
| ROL GRIP PN FLEX INT100 | ROL GRIP FLEX pneumatic system with intermediate H=100mm |
|
|
| ROL GRIP FLEX INT120HD | ROL GRIP FLEX pneumatic system with intermediate H=120mm with 20mm axis |
|
|
| ROL GRIP PN FLEX INT150 | ROL GRIP FLEX pneumatic system with intermediate H=150mm |
|
- Omschrijving
- Eigenschappen
Manual clamping for upper tools with an ergonomic lever.
UPPER TOOLS
Manual clamping for punches with ergonomic lever.
TECHNICAL INFORMATION
Clamping height=100mm.
Bending axis at 7mm.
Also available with H=150mm intermediate.
DOUBLE ORIENTATION
Possibility of mounting the tool reverse (manual clamping from operator side) with manual clamp 11008 (optional).
FRONTAL LOADING
Vertical tool change of standard tool European type and automatic alignment.
SUPPLY
Air connection with nylon flexible pipes.
