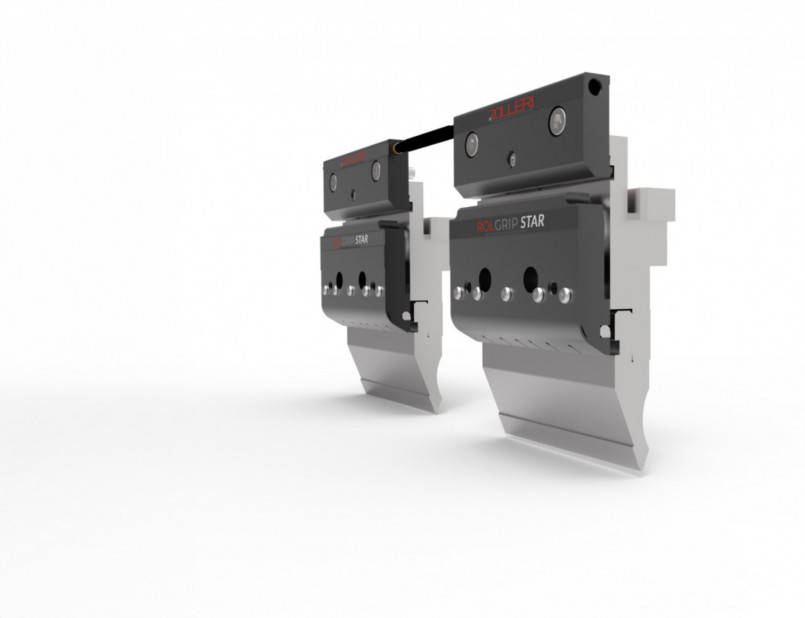

ROL GRIP STAR
| Type | Type | Prijs | |
|---|---|---|---|
| ROL GRIP PN STAR INT100 | ROL GRIP STAR pneumatic system with intermediate H=100mm |
|
|
| ROL GRIP PN STAR INT150 | ROL GRIP STAR pneumatic system with intermediate H=150mm |
|
- Omschrijving
- Eigenschappen
Pneumatic automatic clamping for upper tools.
UPPER TOOLS
Pneumatic automatic clamping for upper tools.
TECNICAL INFORMATION
Clamping height=100mm.
Bending axis at 7mm.
Also available with 20mm axis and with different intermediate heights (H=120mm, H=150mm).
Bending axis at 7mm.
Also available with 20mm axis and with different intermediate heights (H=120mm, H=150mm).
DOUBLE ORIENTATION
Possibility of mounting the tool reverse (manual clamping from operator side) with manual clamp 11008 (optional).
VERTICAL TOOL CHANGE
Vertical tool change of standard tool European type and automatic alignment.
SUPPLY
Patented STAR SYSTEM electrical connection. No need of pipes in working area, and free and easy removal of modules everywhere on clamping system.
