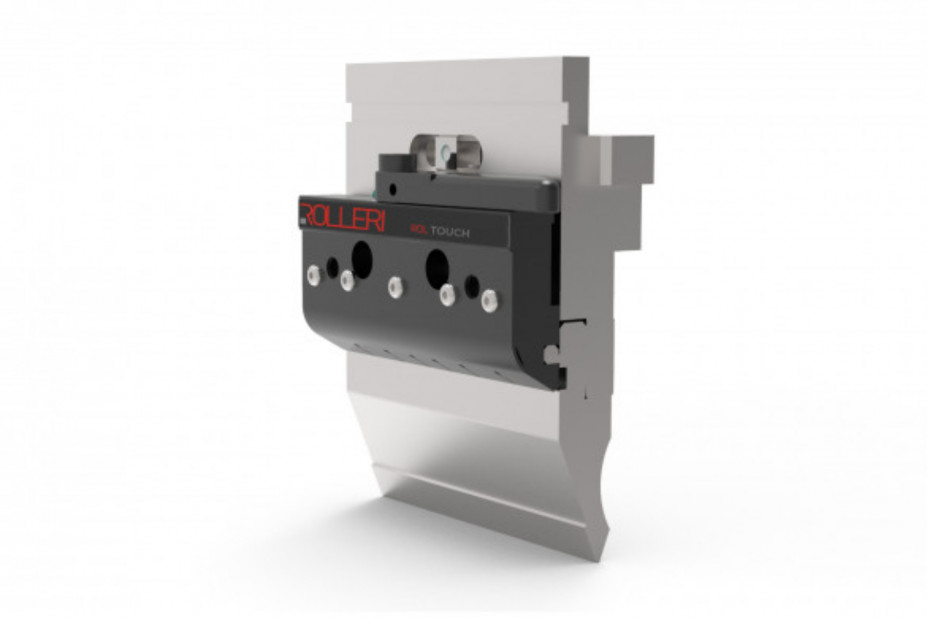

ROL TOUCH
| Type | Type | Prijs | |
|---|---|---|---|
| ST ROL TOUCH 7 H40 | ROL TOUCH clamp for intermediate H=40mm axis 7mm |
|
|
| ST ROL TOUCH 7 H39 | ROL TOUCH clamp for intermediate H=39mm axis 7mm |
|
|
| ST ROL TOUCH 20 | ROL TOUCH clamp for intermediate axis 20mm |
|
- Omschrijving
- Eigenschappen
Manual clamping for punches with ergonomic lever. Compatible with all press brakes with Amada-Promecam type tang.
(exclusief verpakking en transport)
UPPER TOOLS
Manual clamping for punches with ergonomic lever.
FLEXIBILITY
Allows the use of intermediates already mounted on the press brake, by replacing front clamp only: a fast-clamping system with a small investment.
TECHNICAL INFORMATION
Clamping height=100mm.
Bending axis at 7mm.
Also available with bending axis 20mm.
DOUBLE ORIENTATION
Possibility of mounting the tool reverse from operator side, with manual clamp 11009.
VERTICAL TOOL CHANGE
Manual clamping for punches with ergonomic lever. Vertical tool change for standard European type punches and automatic alignment.
Set-up time
| OPERATION | TRADITIONAL MODEL MANUAL WITH SCREWS | MODEL TEDA SPEED GRIP MANUAL (13131-M) |
|---|---|---|
| Screws loosening | 30 screws = 5″ total = 150″ |
15 modules by lever = 2″ total = 30″ |
| Tool extraction | Lateral = 25″ total = 100″ |
Frontale = 8″ total = 32″ |
| Tool loading | Lateral = 25″ total = 100″ |
Lateral = 6″ total = 24″ |
| Pre-screwing 30 screws | 4″ total = 120″ |
– |
| Light pressing to house tools | 10″ total = 10″ |
– |
| Screws tightening 30 screws | 3″ total = 90″ |
– |
| Clamping 15 modules by ergonomic screw | – | 4″ total = 30″ |
| TOTAL TIME | 570″ = 9′,30″ | 116″ = 1′,56″ |
