30148PRODUCTEN > KANTGEREEDSCHAP EN TOEBEHOREN > KANTGEREEDSCHAP > Type R1: Matrijzen > 3024830348

30248

Type Lengte Gewicht Prijs
30248.835 835 mm 14.20
30248.415 415 mm 7.10
30248.835s 835 mm FCA 13.70
2-V Matrijs Centrisch R1 A Eurostyle type met hoogte=46mm, α=9°, Radius=0./0.6mm, Gereedschapsstaal=C45, Max
2-V Matrijs Centrisch R1 A Eurostyle type met hoogte=46mm, α=9°, Radius=0./0.6mm, Gereedschapsstaal=C45, Max
  • Omschrijving
  • Eigenschappen
  • Bijlagen

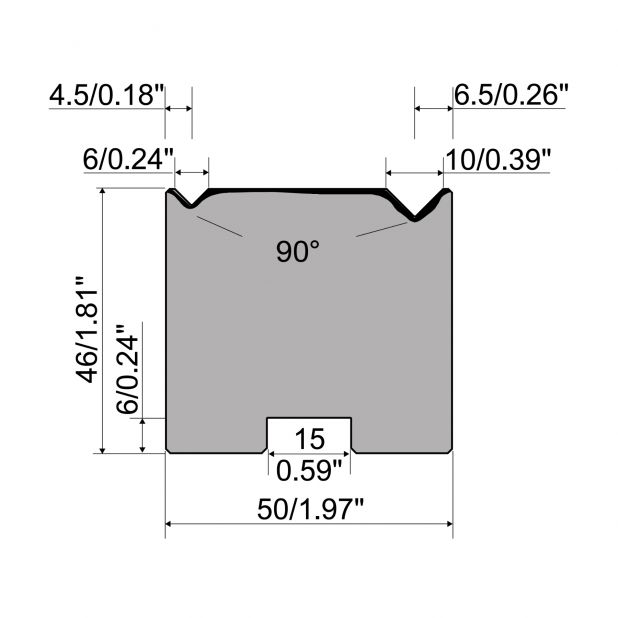

2-V Matrijs Centrisch R1 A Eurostyle type met hoogte=46mm, α=9°, Radius=0./0.6mm, Gereedschapsstaal=C45, Max. capaciteit=700kN/m.

835 mm FC
795 mm FX

30000

Adapter voor centrerende 2-V matrijs R1 Eurostyle A series met hoogte 15mm, Materiaal=C45, Max. capaciteit=1000kN/m.
