32200PRODUCTEN > KANTGEREEDSCHAP EN TOEBEHOREN > KANTGEREEDSCHAP > Type R1: Matrijzen > 3240032500

32400

Type Lengte Gewicht Prijs
32400.835 835 mm 3.00
32400.415 415 mm 1.50

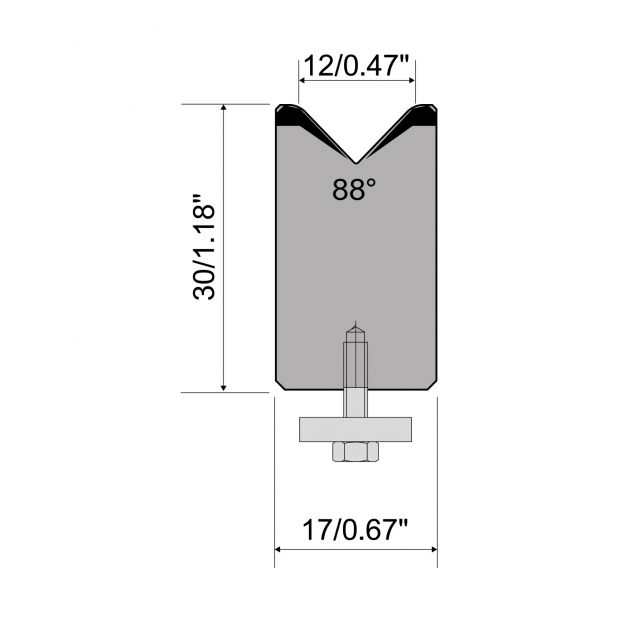

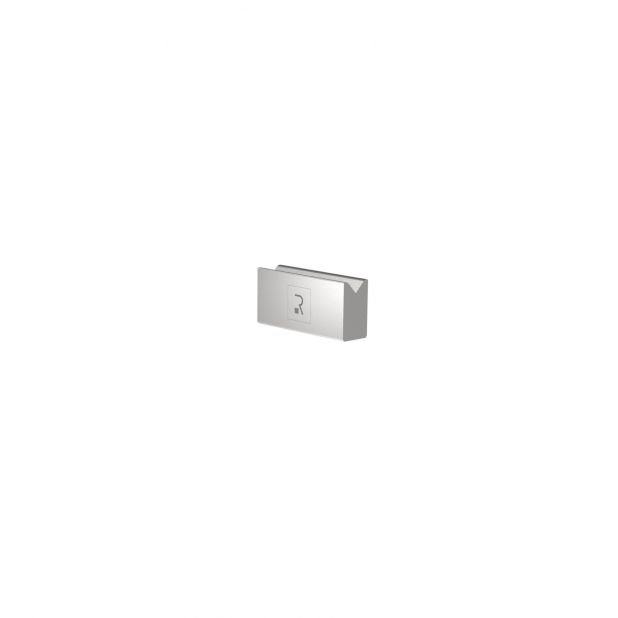

1-V Matrijs Centrisch R1 A Eurostyle type met hoogte=30mm, α=88°, Radius=2,5mm, Gereedschapsstaal=C45, Max.
1-V Matrijs Centrisch R1 A Eurostyle type met hoogte=30mm, α=88°, Radius=2,5mm, Gereedschapsstaal=C45, Max.
  • Omschrijving
  • Eigenschappen
  • Bijlagen

1-V Matrijs Centrisch R1 A Eurostyle type met hoogte=30mm, α=88°, Radius=2,5mm, Gereedschapsstaal=C45, Max. capaciteit=1000kN/m.

LASER TRACKERS | B-LIGHT

Universeel buigmarkering trackingsysteem welke de operator ondersteund tijdens het buigproces met het positioneren van de producten op een kantbank

33000

1-V Matrijs adapter R1 A series met hoogte=81,5mm, Materiaal=C45, Max. capaciteit=1000kN/m.
