50796PRODUCTEN > KANTGEREEDSCHAP EN TOEBEHOREN > KANTGEREEDSCHAP > Type R1: Matrijzen > 5039650490

50396

Type Lengte Gewicht Prijs
50396.835 835 mm 10.8
50396.415 415 mm 5.30
50396.835s 835 mm FCA 10.80

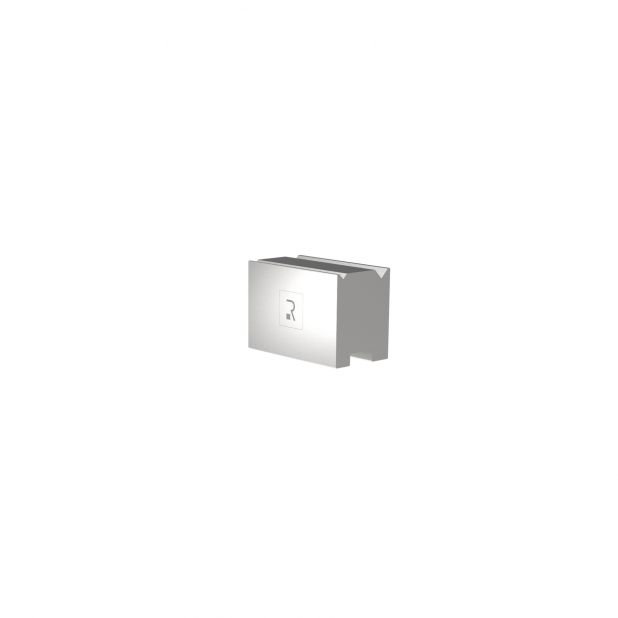

2-V Matrijs Centrisch R1 A Eurostyle type met hoogte=45,5mm, α=88°, Radius=0.5/0.8mm, Gereedschapsstaal=C45,
2-V Matrijs Centrisch R1 A Eurostyle type met hoogte=45,5mm, α=88°, Radius=0.5/0.8mm, Gereedschapsstaal=C45,
  • Omschrijving
  • Eigenschappen
  • Bijlagen

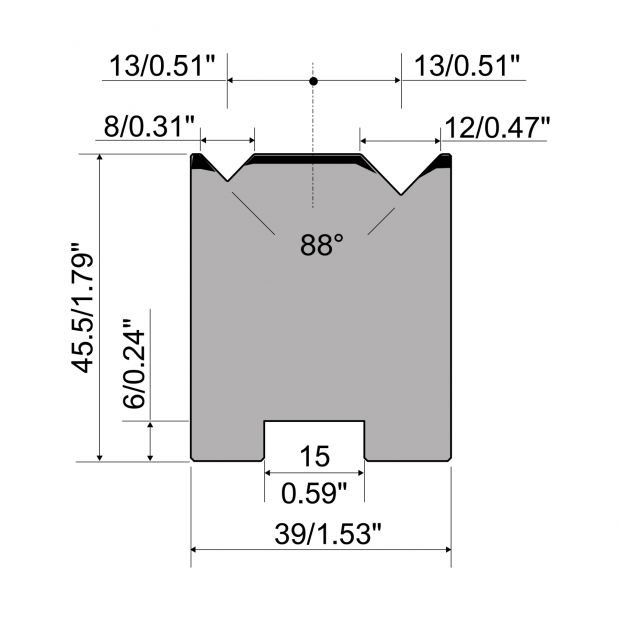

2-V Matrijs Centrisch R1 A Eurostyle type met hoogte=45,5mm, α=88°, Radius=0.5/0.8mm, Gereedschapsstaal=C45, Max. capaciteit=700kN/m.

835 mm FC
795 mm FX

30000

Adapter voor centrerende 2-V matrijs R1 Eurostyle A series met hoogte 15mm, Materiaal=C45, Max. capaciteit=1000kN/m.
