30347PRODUCTEN > KANTGEREEDSCHAP EN TOEBEHOREN > KANTGEREEDSCHAP > Type R1: Matrijzen > 3044830548

30448

Type Lengte Gewicht Prijs
30448.835 835 mm 14.20
30448.415 415 mm 7.10
30448.795s 795 mm FX 13.50
30448.805s 805 mm F 13.70

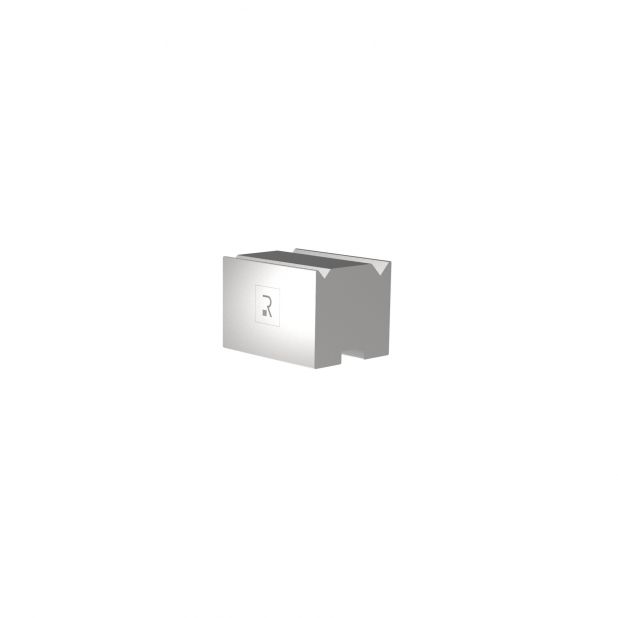

2-V Matrijs Centrisch R1 A Eurostyle type met hoogte=46mm, α=88°, Radius=0,5mm, Gereedschapsstaal=C45, Max.
2-V Matrijs Centrisch R1 A Eurostyle type met hoogte=46mm, α=88°, Radius=0,5mm, Gereedschapsstaal=C45, Max.
  • Omschrijving
  • Eigenschappen
  • Bijlagen

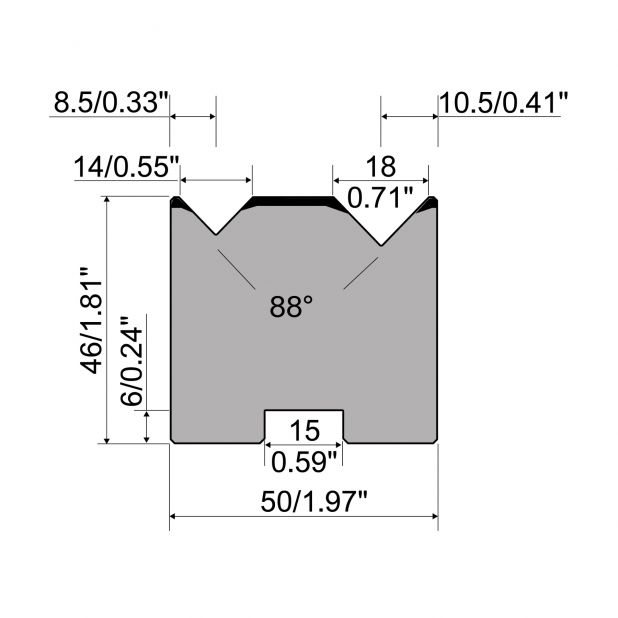

2-V Matrijs Centrisch R1 A Eurostyle type met hoogte=46mm, α=88°, Radius=0,5mm, Gereedschapsstaal=C45, Max. capaciteit=1000kN/m.

795 mm FX
805 mm F

30000

Adapter voor centrerende 2-V matrijs R1 Eurostyle A series met hoogte 15mm, Materiaal=C45, Max. capaciteit=1000kN/m.
