30248PRODUCTEN > KANTGEREEDSCHAP EN TOEBEHOREN > KANTGEREEDSCHAP > Type R1: Matrijzen > 3034850190

30348

Type Lengte Gewicht Prijs
30348.835 835 mm 14.20
30348.415 415 mm 7.10
30348.835s 835 mm FCA 13.70
2-V Matrijs Centrisch R1 A Eurostyle type met hoogte=46mm, α=90°, Radius=0.5/0.8mm, Gereedschapsstaal=C45, M
2-V Matrijs Centrisch R1 A Eurostyle type met hoogte=46mm, α=90°, Radius=0.5/0.8mm, Gereedschapsstaal=C45, M
  • Omschrijving
  • Eigenschappen
  • Bijlagen

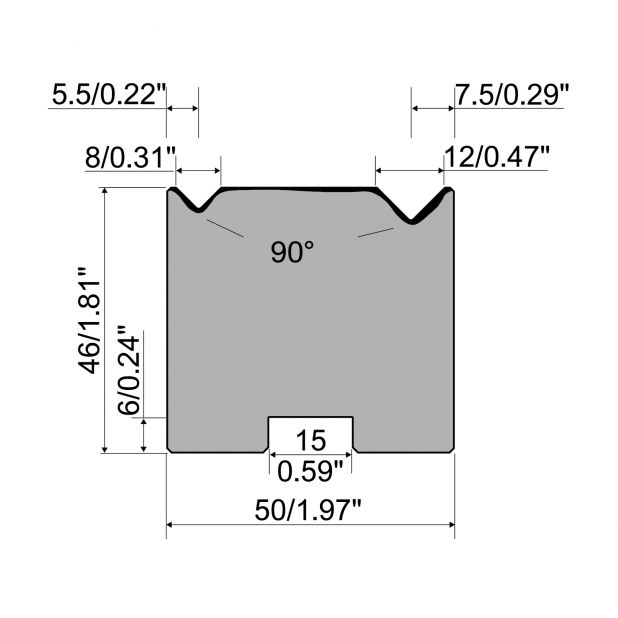

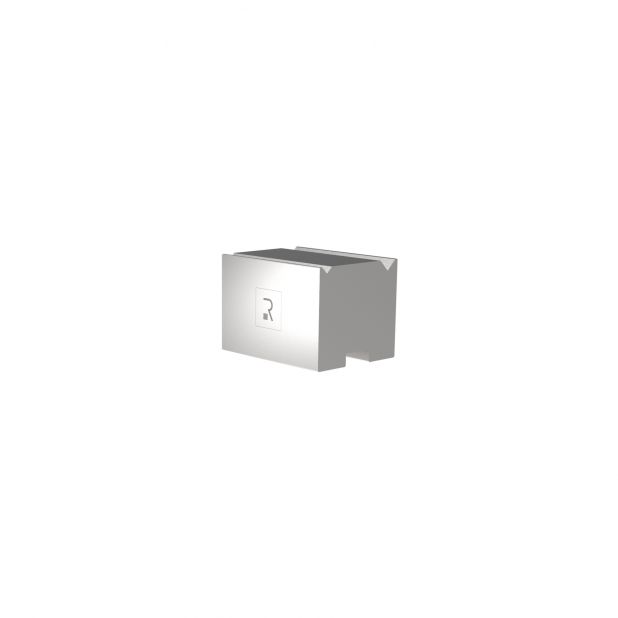

2-V Matrijs Centrisch R1 A Eurostyle type met hoogte=46mm, α=90°, Radius=0.5/0.8mm, Gereedschapsstaal=C45, Max. capaciteit=700kN/m.

835 mm FC
795 mm FX

30000

Adapter voor centrerende 2-V matrijs R1 Eurostyle A series met hoogte 15mm, Materiaal=C45, Max. capaciteit=1000kN/m.
