50196PRODUCTEN > KANTGEREEDSCHAP EN TOEBEHOREN > KANTGEREEDSCHAP > Type R1: Matrijzen > 5029650796

50296

Type Lengte Gewicht Prijs
50296.835 835 mm 10.4
50296.415 415 mm 5.20
50296.835s 835 mm FCA 10.40

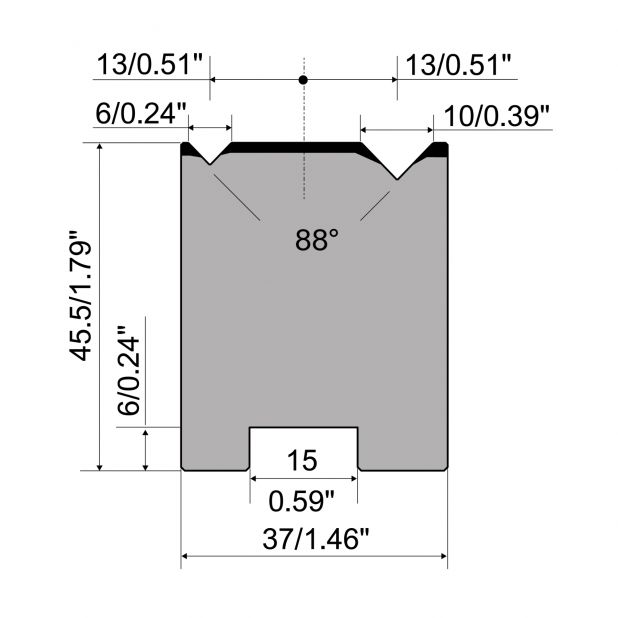

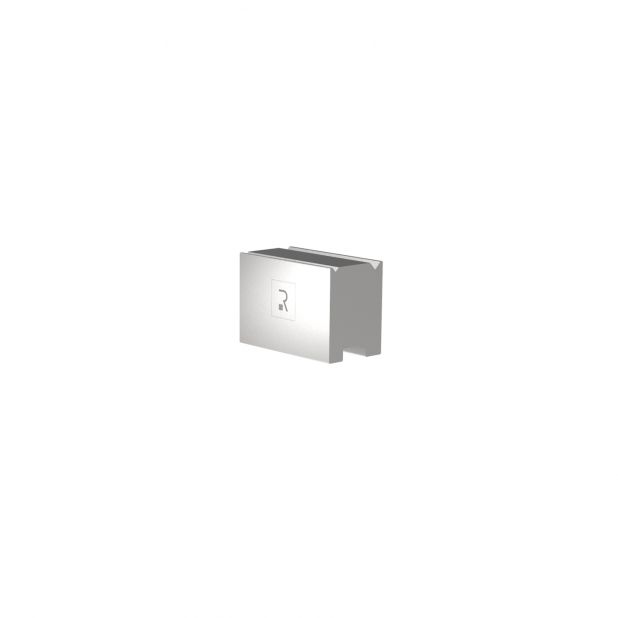

2-V Matrijs Centrisch R1 A Eurostyle type met hoogte=45,5mm, α=88°, Radius=0.4/0.6mm, Gereedschapsstaal=C45,
2-V Matrijs Centrisch R1 A Eurostyle type met hoogte=45,5mm, α=88°, Radius=0.4/0.6mm, Gereedschapsstaal=C45,
  • Omschrijving
  • Eigenschappen
  • Bijlagen

2-V Matrijs Centrisch R1 A Eurostyle type met hoogte=45,5mm, α=88°, Radius=0.4/0.6mm, Gereedschapsstaal=C45, Max. capaciteit=700kN/m.

795 mm FX
805 mm F

30000

Adapter voor centrerende 2-V matrijs R1 Eurostyle A series met hoogte 15mm, Materiaal=C45, Max. capaciteit=1000kN/m.
